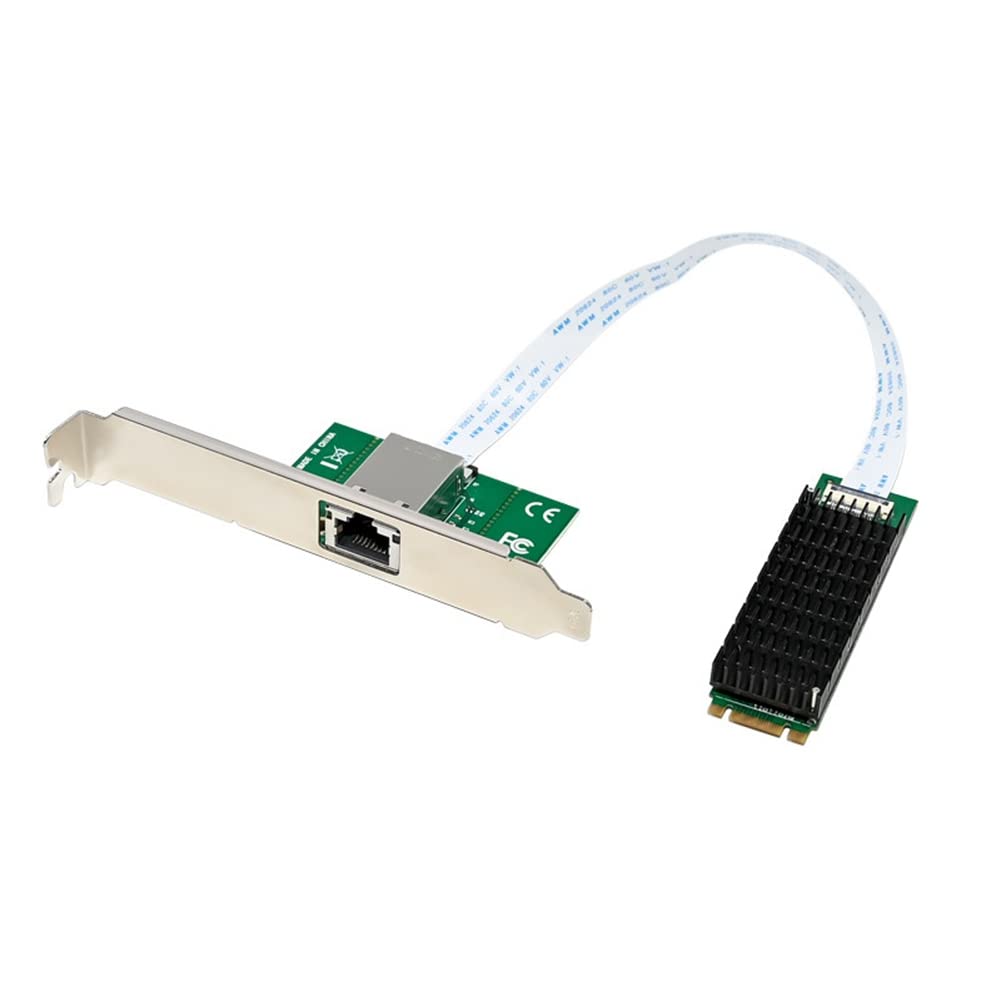

Droagoct 10GbE Single Port M.2 B+M Key Network Card - AQC107 Chip RJ45 Ethernet Adapter for Industrial Control & Server Applications - High-Speed Networking Solution for Data Centers, Workstations & Cloud Computing

$55.86

$101.58

Safe 45%

Droagoct 10GbE Single Port M.2 B+M Key Network Card - AQC107 Chip RJ45 Ethernet Adapter for Industrial Control & Server Applications - High-Speed Networking Solution for Data Centers, Workstations & Cloud Computing

$55.86

$101.58

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

26 people viewing this product right now!

SKU: 88328568

Guranteed safe checkout

Description

Droagoct Wake-on-LAN Power Management () Supports IPv4, IPv6 and IPv6/UDP checksum download Supports giant frames (up to 16 kbytes) Quality of Service () Supports up to eight traffic classes and Data Center Bridging() Chip Processor:Marvell/AQC107 Applicable network: 10GbR server network card Main Controller:Marvell AQC107 Bus Type:M.2 B+M KEY Media interface: 1 x RJ45 copper cable Transmission speed: 10G/5G/2.5G/1000/100Mbps Network topology: 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T / 100BASE-T IEEE 802.3bz, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az -Energy Efficient Ethernet (EEE) Management functions: IPMI passing through SMBus or NC-SI, iSCSI boot, , PXE remote boot, VLAN filtering Firmware Environment: Operating temperature: 0 - 55 °C (32 - 131 °F) Storage temperature: -40 - 70 ℃ (-40 - 158℉) Storage humidity: 90% non-condensing relative humidity at 35°C Colour: green. Material: PCB Package Content: 1 x Network Card 1 x CD 1 piece short iron Only the above package content, other products are not included. Please note: Different lighting conditions and screen settings may cause the colour of the item in the picture to look a little different from the real thing. The allowed measurement error is +/- 1-3 cm.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

The AQC107 incorporates Aquantia's AQrate PHY technology to deliver network speeds of 10GbE over 6a and 5GbE and network speeds of 2.5GbE over 100m of cable 5e or higher, allowing for higher data rates, without changes to conventional cabling.

Compliant with PCIE Express Revision 3.0 and PCI Express Reivison2.0 downstream. Each line supports a line speed of 8.0 GT/s and 5.0 GT/s. Supports Gen3 x4 or Gen2 x4. Support communication and management functions. Aquantia AQrate PHY integrated with NBASE-T technology.Support PHY specification via 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T.

Industrial M.2 B+M AQC107 10G integrated network adapter, which uses high performance Marvell AQC107 Ethernet controller.Marvell AQC107 controller has Base-T copper network interface, supports 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T /100BASE-T and PCIe 3x4 or Gen2x4, AQtion Ethernet controller can easily handle 10GbE lines speed performance.

Designed for any mobile device, desktop computer, workstation, value server or industrial design with strict space restrictions. - Win 7/ Win 8/Win 8.1/Win 10/Server 2012/ Server 2016 32 or 64 bits, Linux Kernels3.10 and above, M.2 B+M KEY slot available.

High-resolution on-chip cable analyzer for advanced cable diagnostics. Energy Efficient Ethernet (EEE) support. Support IEEE1588v2 precision time protocol. Supports large submission download, receiver scaling (RSS), shortcut to cache (), and headers. Checksum improves network performance and reduces host CPU utilization
