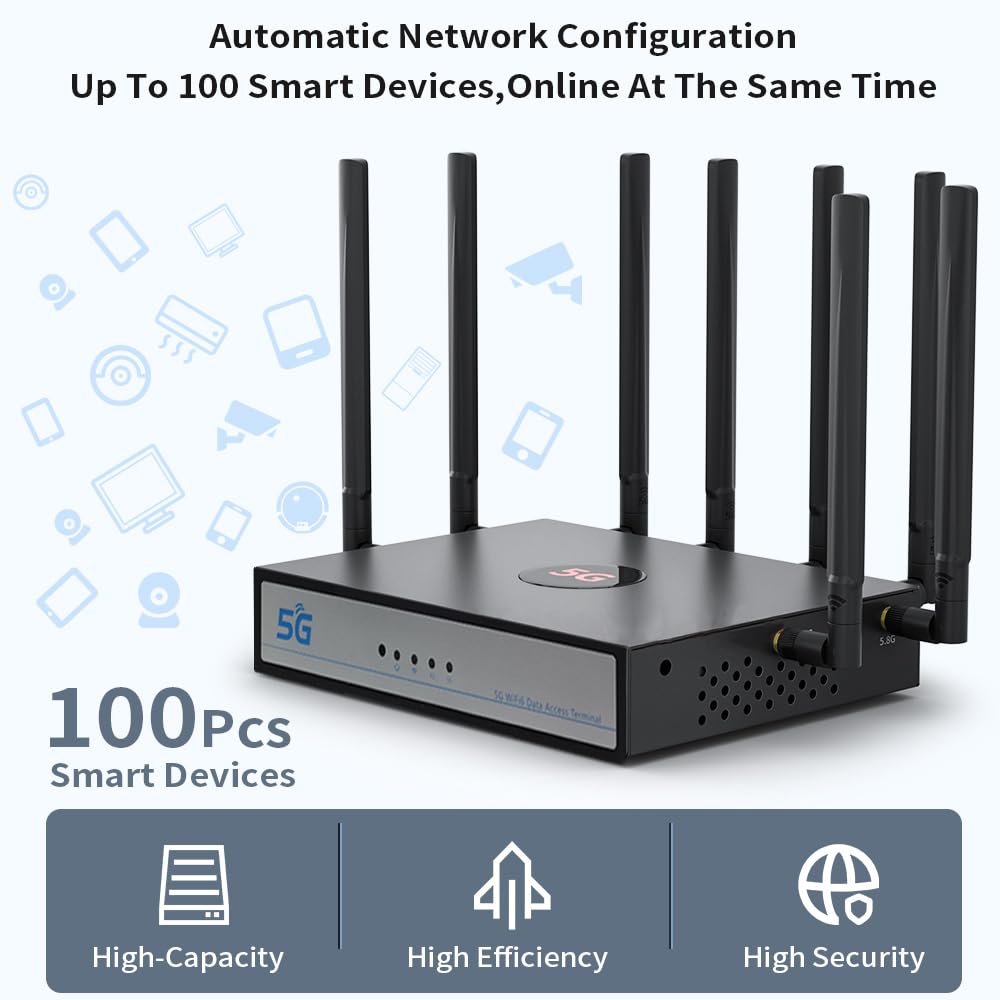

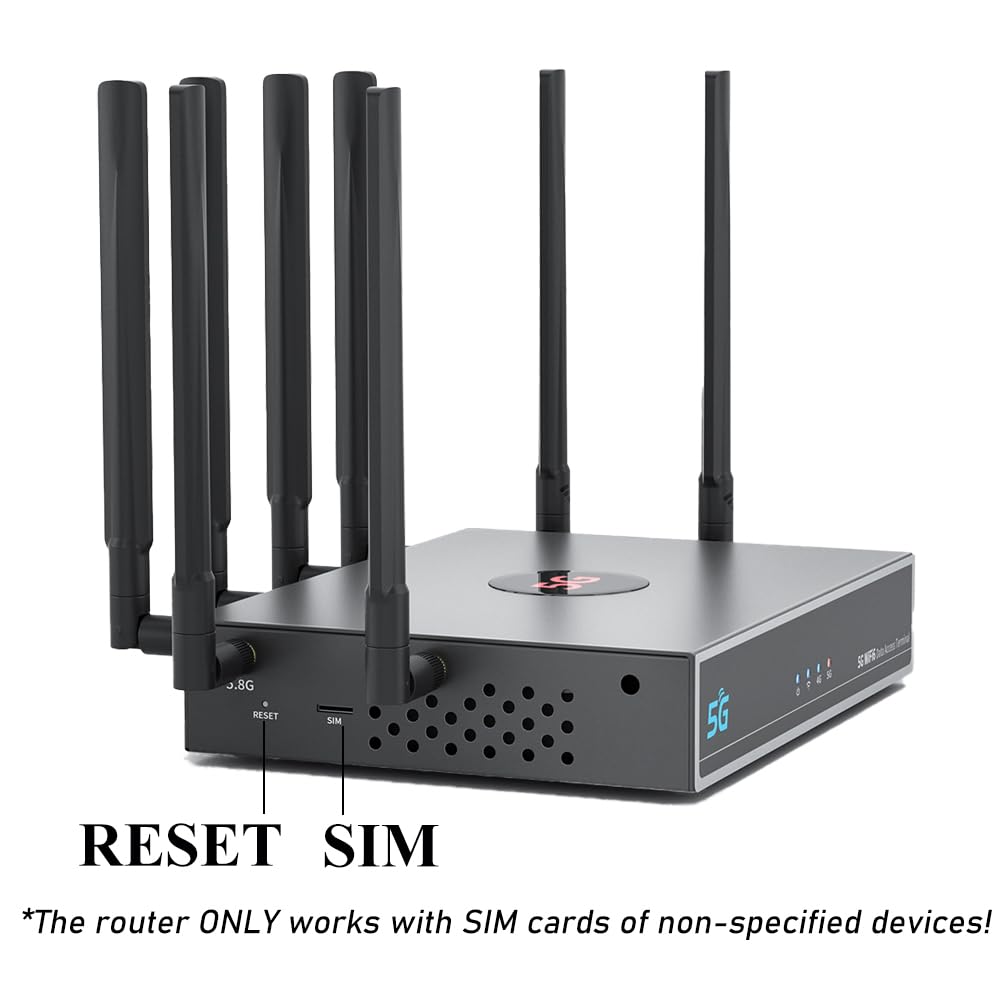

UOTEK 5G Router with SIM Card Slot Modem, NSA SA WiFi 6 Dual Band CPE -- SPEED UP! Multi-device Transceiver Technology WiFi6 -- Backward compatible with WiFi5 5G Standards: 3GPP Release 15 NSA/SA operation, Sub-6 GHz 5G NSA/SA Frequency Band: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 4G Band LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 CPE Wireless Router Applications As long as there is 5G signal coverage, you can plug in the card to get high-speed WIFI, no need to go through the tedious procedures of moving to the network, office/exhibition/shop/rental can be quickly and flexibly set up network. Frequently Asked Questions Q: Does it work with AT&T/T-Mobile/Verizon cards? A: Yes. but if it is not IoT SIM card, ordinary phone SIM card needs to carry out the following T-mobile: some need to set up APN, still can't network need to set up special AT command. Verizon: need to change IMEI number; slow network speed need to change TTL; still can't connect to the Internet need to set up special AT commands. AT&T's SIM card is the same. This step is required, many customers can't get on the internet because they didn't set the APN/IMEI. (APN can be found on the carrier's website, IMEI can be copied from the phone, TTL/AT command can be consulted seller.) Q: What is the latest version of the firmware? How do I get the latest version of the firmware? A: The latest version of the firmware is 2.2.2. If this is exactly the version, no update is needed. The products are all the latest from the factory, never used. The original version was relatively more stable. We fully accept the suggestions from our customers and the firmware of products are now upgraded to the latest version batch by batch. If you receive the old version, no matter, leave a message, the seller will send the new version to you. Or download the latest firmware from UOTEK official website. Q: Does it support setting APN/IMEI/TTL/VPN/IPV6 for particular carriers? A: All support. Q: What is the size of the inserted card? A: Nano SIM card, 12*9mm. - We have a professional support team, if you encounter any other problems, please feel free to ask. - Usage Steps -- Please check carefully! Insert SIM card to use 1. Connect the antennas one by one according to the text on the holes of the router. 2. Insert the SIM card first, and then plug in the power supply, as hot-plugging is not supported. 3. Enter the default WiFi password and make sure your smartphone or computer is connected to WiFi: 5G_CPE. 4. Enter the default URL in the browser and SET THE APN according to the carrier of your SIM card. Some carriers may require THE IMEI to be set the same as your phone/tablet. 5. If no other settings are required, you can access the Internet normally. Connecting to the network cable for use As a normal router, plug the network cable into the blue WAN port. Then you can connect to WiFi. Key Features New Generation 5G X62 Chip -Stable Operation without Dropouts New architecture design of the router X62 chip, data processing capacity and operational efficiency has been greatly improved. Fast Network Access & Multi-device Support More Spatial Flow! Greater Capacity! Dual-band 4 spatial streams, bandwidth up to 1800Mbps, 8 external high-performance Wifi antennas, standby volume on line 100 units. Enterprise Level Office Security New future security technology, built-in upgrade firewall, MAC address filtering, WIFI encryption authentication and other security protection. 2-in-1 Card/Broadband Fast surfing even with multiple devices. Insert the SIM card to access gigabit Internet, it is also supported by OFDMA technology, which makes network latency lower and surfing more smoothly. Seamless Roaming with Hybrid Backhaul You can freely choose the MESH networking method through wired backhaul and wireless backhaul to meet the simple deployment in various indoor scenarios. Seamless roaming feature ensures a more stable wireless connection while you are on the move. Play Smoothly and Quickly Low latency and play smoothly. Stable connection of multiple devices at the same time, each device can smoothly access the Internet to ensure user experience. Distribution Map of Frequency Band - Covering 98% of the World's Regions
